What is the Analog Discovery Pro ADP2230?

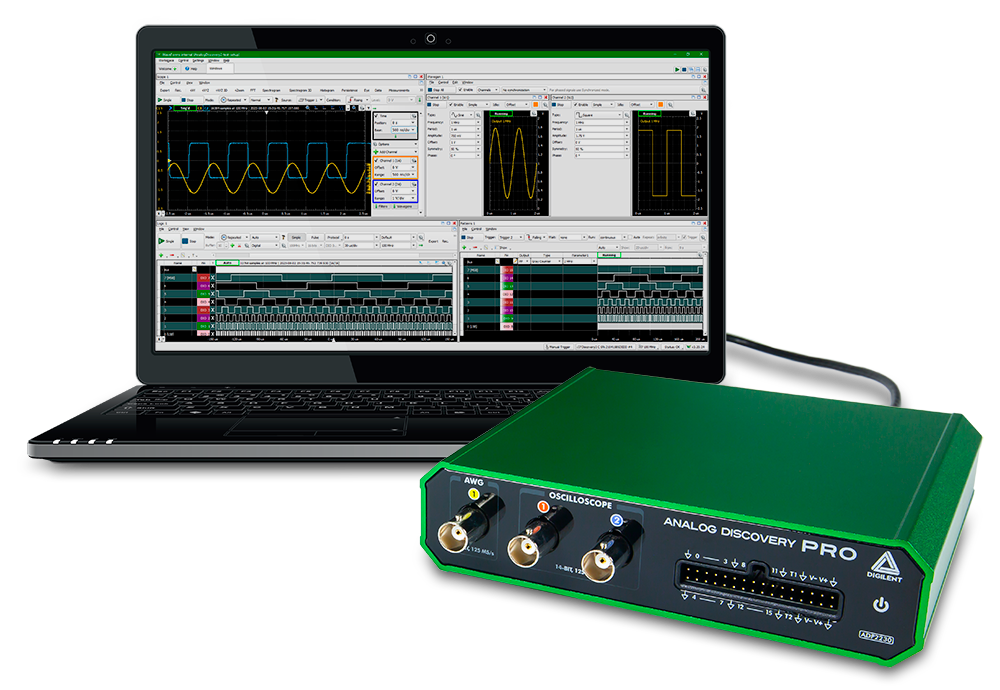

The Analog Discovery Pro ADP2230™ is a mixed signal oscilloscope (MSO) designed for professional engineers. It features analog inputs, analog output, and digital I/O, with deep memory buffers all operating at up to 125 MS/s. Users can both receive and generate digital signals to test and analyze data from various devices while simultaneously powering those systems with its robust power supply. The feature-packed design allows the ADP2230 to perform the functions of several test and measurement devices and can replace a stack of traditional instruments.

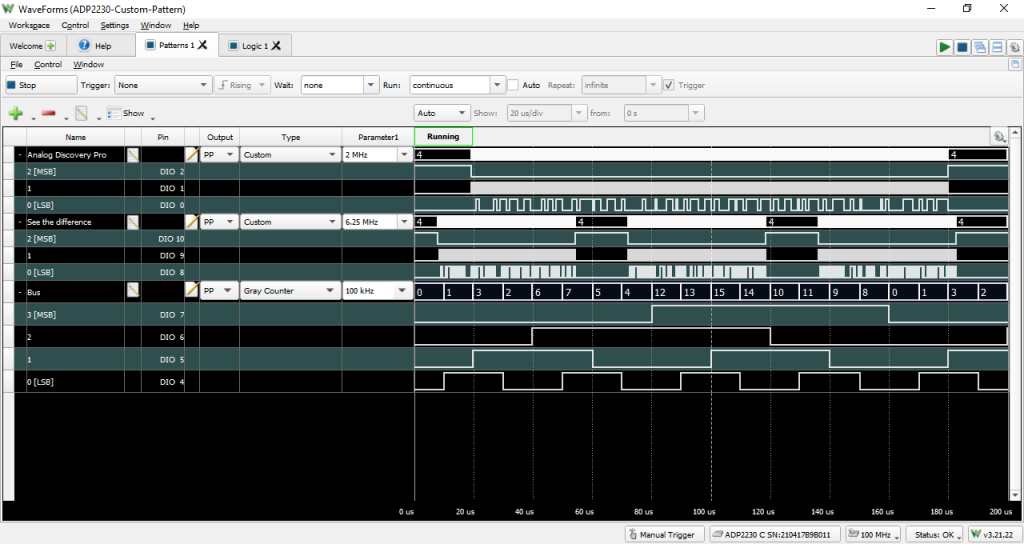

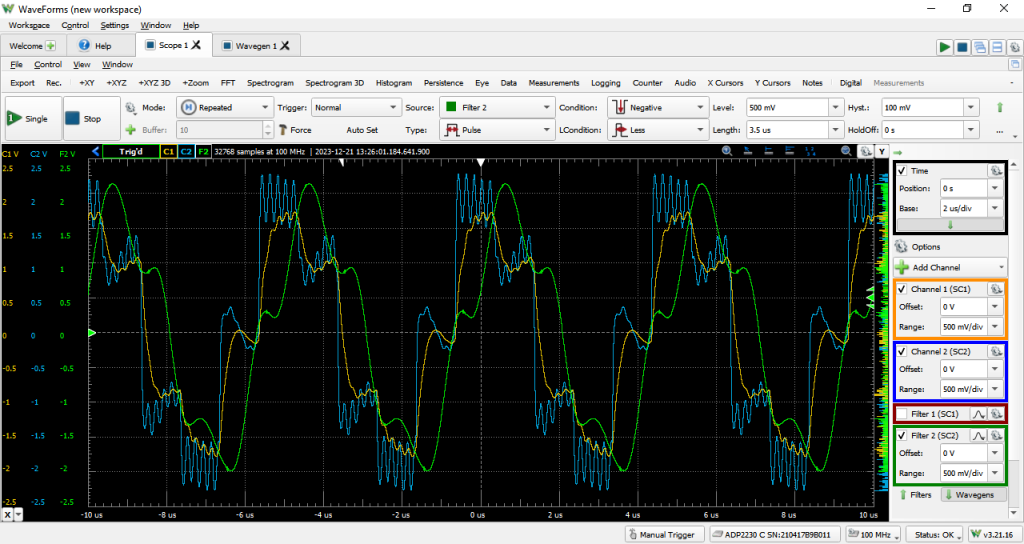

With the free WaveForms software, users can view and capture complex data, perform spectral and network analysis, and quickly retrieve large amounts of data. WaveForms leverages the ADP2230’s deep buffer memory, allowing hundreds of millions of samples to be stored and streamed back to the host computer. WaveForms’ friendly user interface has the feel of traditional benchtop oscilloscopes.
The ADP2230 is part of the Digilent Analog Discovery Pro family of Test and Measurement devices that empower engineers, researchers, educators, and scientists to design and test with unparalleled flexibility. These customizable solutions cater to both seasoned professionals and emerging engineers, accelerating development while maintaining a low barrier to entry.
Highlighted Features:
- USB Mixed Signal Oscilloscope with deep memory buffers for long acquisitions
- On-device buffering up to 128 MS per channel
- BNC connectors and an aluminum case
- Two analog inputs – 50+ MHz bandwidth, 14-bit resolution, up to ±25 V input range
- One analog output – 15 MHz bandwidth, 14-bit resolution, ±5 V output range
- 16 digital I/O channels – dynamically configurable as input or output
- Sample rates up to 125 MS/s
- Two programmable power supply outputs (0.5 V to 5 V, -0.5 V to -5 V) @ 3 W per channel
- USB 3.0 communication speeds
- Sync multiple devices for increased channel count
- Extensive software support with WaveForms, WaveForms SDK, LabVIEW, MATLAB
- View the datasheet for more details
