Digilent Introduces USRP B205mini-I FPGA based Software-defined Radio Platform

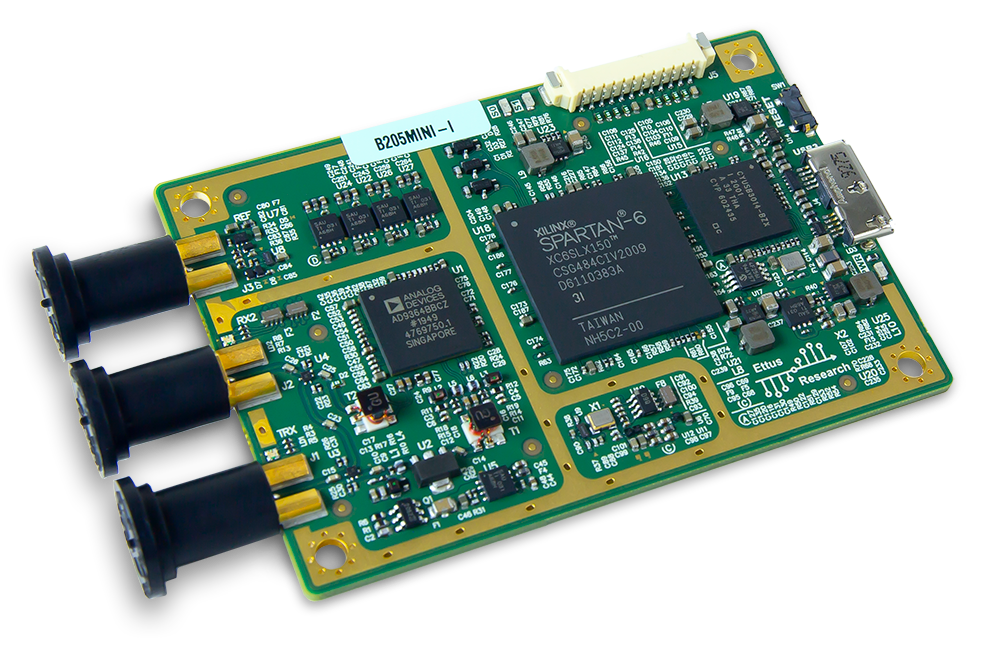

USRP B205mini-I Software-defined Radio Platform

A wide frequency range (70 MHz to 6 GHz) and a user-programmable transceiver

The USRP B205mini-i is a flexible and compact platform that is ideal for both hobbyist and OEM applications. It is designed by Ettus Research™ and provides a wide frequency range (70 MHz to 6 GHz) and a user-programmable, industrial-grade Xilinx Spartan-6 XC6SLX150 FPGA. USRPs are transceivers, meaning that they can both transmit and receive RF signals. The RF front end uses the Analog Devices AD9364 RFIC transceiver with 56 MHz of instantaneous bandwidth. The board is bus-powered by a high-speed USB 3.0 connection for streaming data to the host computer. The USRP B205mini-i also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal.

The hardware is conveniently accessible through the USRP Hardware Driver (UHD). UHD provides both a C/C++ and Python API and offers cross-platform support for multiple industry-standard development environments and frameworks, including RFNoC, GNU Radio, LabVIEW and MATLAB/Simulink. And to ensure you have no restrictions on how you use UHD, it is available on Linux, Windows, and Mac OS. UHD provides the necessary control used to transport user waveform samples to and from USRP hardware as well as control various parameters (e.g. sampling rate, center frequency, gains, etc) of the radio.

The USRP B205mini-i is destined for Researchers, Hobbyists, Students, Professors and Industry professionals. Some of the applications that users can make use of the USRP B205mini-i are:
