Intel® Pentium™ & Celeron™ Processor N3000 Series on SMARC™ & Qseven™ Computer-on-Module (in English)

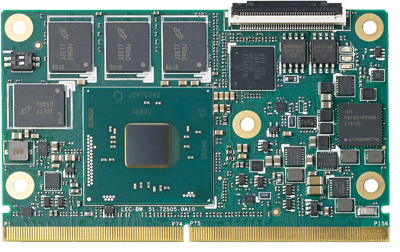

LEC-BW_bimg_en_1
LEC-BW

ADLINK Technology, Inc., a Data Respons partner and a leading global provider of cloud-based services, intelligent gateways, and embedded building blocks for edge devices that enable the Internet of Things (IoT), today announced extended offerings based on the latest Intel® Pentium™ and Celeron™ Processor N3000 Series (codename Braswell) to include SMARC™ and Qseven™ computer-on-modules (COMs).

The LEC-BW is a SMARC® Short Size Module with dual or quad-core Intel® Pentium™ and Celeron™ Processor N3000 Series System-on-Chip (SoC) from 1.46 up to 1.91 GHz and up to 8 GB on board DRAM. The graphics interfaces include LVDS, HDMI and DP supporting multiple independent screens. The module also offers 2x camera interfaces. The LEC-BW ’s additional rich I/O options include 1x GbE, 1x SDIO/SD/MMC, 2x SATA-III 6Gbit/s, 1x USB 3.0, 2x USB 2.0 (host), 1x USB 2.0 (client) 12x GPIO, 2x SPI, and 4x I2C. The LEC-BW features standard operating system support for Windows 7/8.1/10, Linux, and Android, and also offers optional support for QNX and VxWorks.

ADLINK’s Q7-BW is based on the QSeven Hardware Specification v2.0 and features a dual or quad-core Intel® Pentium™ and Celeron™ Processor N3000 Series System-on-Chip (SoC) from 1.46 up to 1.91 GHz and up to 8 GB onboard memory. Graphic interfaces include single/dual channel LVDS, HDMI/DP, and 2x eDP (optional) interfaces. I/O includes 3x PCIe x1 Gen2, 1x GbE, 1x USB 3.0, 5x USB 2.0 (host), and 1x USB2.0 (client), as well as storage support for 1-2x SATA3 6Gbit/s (1x onboard SATA SSD, optional) and 1x SDIO (4 bit). The option is also available for soldered, bootable eMMC flash storage from 4GB to 64GB. The Q7-BW features standard operating system support for Windows 7/8.1/10, Linux, and Android.

Highlights:

  • Dual or quad-core Intel® Pentium™ and Celeron™ Processor N3000 Series SoC
  • Up to 8 GB DDR3L at 1333/1600 MT/s
  • LVDS, HDMI
  • 2x MIPI CSI camera interfaces, GbE, 3x PCIe
  • 1x SDIO/SD/MMC, 2x SATA3 6Gbit/s, 1x USB 3.0 host, 2x USB 2.0 host, 1x USB 2.0 client, 12x GPIO, 2x SPI, 4x I2C, 1x eMMC
