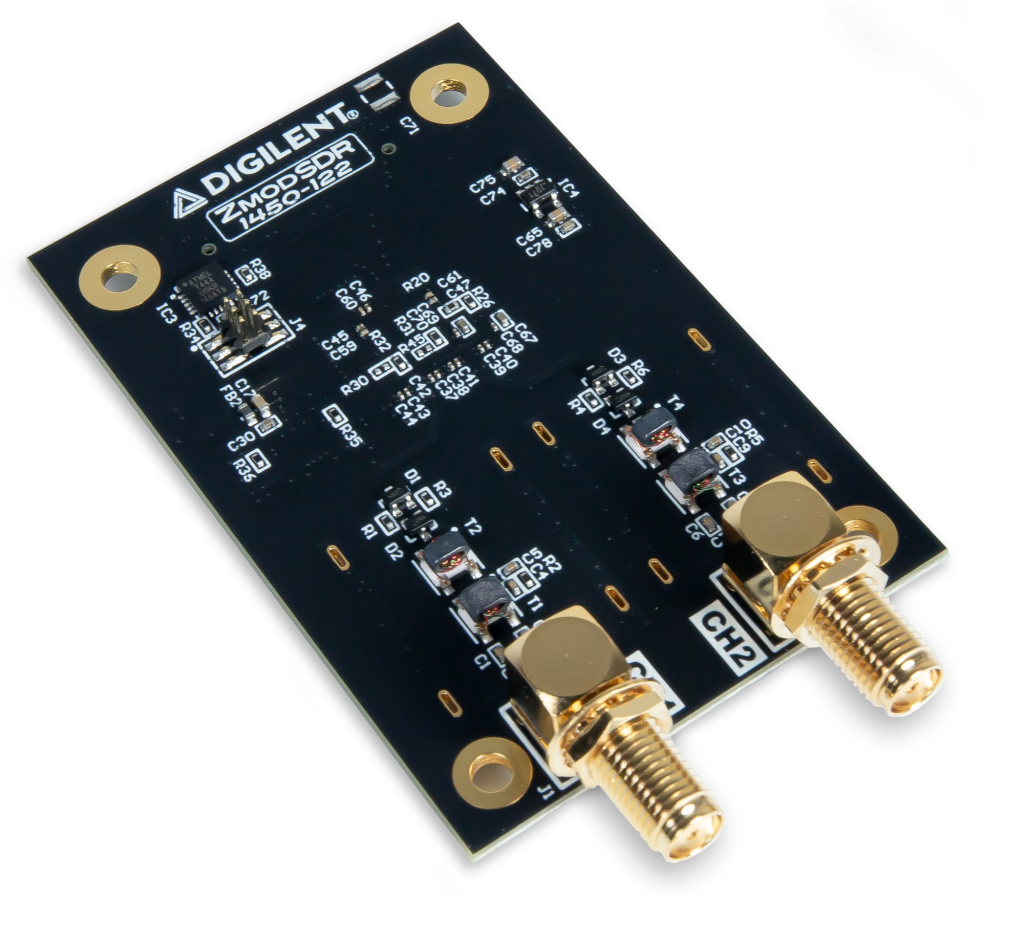

The Digilent Zmod SDR is a dual-channel digitizer designed for software-defined radio and RF applications. It is a SYZYGY™-compatible pod containing a dual-channel ADC and the associated front end. The Zmod SDR is intended to be used with any SYZYGY™ compatible carrier board. It features a wide input bandwidth, allowing for undersampling applications – capturing signals with frequencies much higher than the baseline 122.88 MS/s sample rate’s associated Nyquist frequency. An on-board low-jitter clock generator and low-noise design provide the precision necessary to capture fast radio signals.
When paired with an Eclypse Z7 host board, the Zmod is supported in GNU Radio, providing a convenient and familiar interface for SDR experts and researchers.
Features:
- Channels: 2
- Channel Type: Single-ended
- Resolution: 14-bit
- Input Range: ±1 V
- Absolute Resolution: 61 μV
- Sample Rate: 122.88 MS/s, max
- Input Impedance: 50 Ω @ 10 MHz
- Input Coupling: AC
- Analog Bandwidth: 35 kHz – 470 MHz @-12 dB, 100 kHz – 200 MHz @-3 dB
- Reference Clock: Onboard or from SYZYGY host board
Digilent offers a wide range of SYZYGY-compatible Zmods to choose from, including modules for ADC, AWG, and digitizer with various options to choose from.
