New Product Introduction – AmITX-BW-I: Thin Design Mini-ITX Embedded Board with Intel Braswell Processors.

Data Respons partner, ADLINK, launched AmITX-BW-I, the low-profile Thin Mini-ITX embedded board supporting an Intel® Pentium®/Celeron® processor N3000 family and Intel Atom™ processor x5-E8000 system-on-chip (SoC). The AmITX-BW-I is specifically designed for customers who need significant graphics performance with low power consumption in a long product life solution

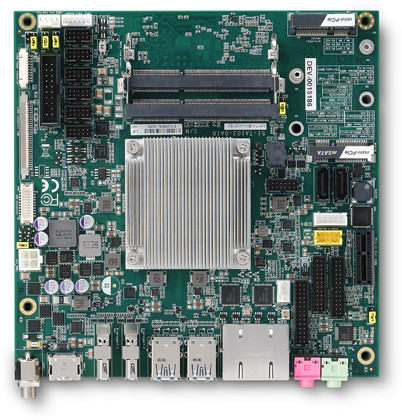

AmITX-BW-I_bimg_enThe Intel® Pentium®/Celeron® processor N3000 family and Intel Atom™ processor x5-E8000 SoC (formerly “Braswell”) are built on 14nm technology and support non-ECC type DDR3L dual-channel memory at 1600/1333 MHz to provide excellent overall performance. Integrated Intel® Gen 8 Graphics includes features such as OpenGL 4.2, DirectX 12, OpenCL 1.2 and support for H.265/HEVC @ level 5, H.264 @ level 5.1, MPEG2, MVC, VC-1, VP8, WMV9, JPEG, VP8 hardware video decode and H.264 @ level 5.1, MVC, JPEG hardware video encode.

The AmITX-BW-I supports dual stacked SODIMM sockets for up to 8 GB non-ECC type DDR3L memory, and graphics outputs include DisplayPort, HDMI, and optional eDP and optional dual-channel 18/24-bit LVDS. I/O features include HD Audio, dual Gigabit Ethernet port, 4x USB 3.0 ports and 4x USB 2.0 ports, 6x COM ports, PCIe x1 slot, Mini PCIe slot, mSATA slot, and 2x SATA 6 Gb/s ports. A feature connector provides 10 GPIO, SMBus, and I2C, and optional SIM card slot and microSD card slot are available. The AmITX-BW-I is equipped with SPI AMI EFI BIOS, supporting embedded features such as hardware monitor and watchdog timer.

Features:

  • Low-profile Thin Mini-ITX Embedded board Intel Pentium/Celeron Processor N3000 Series and Atom x5-E8000 Processor, 14nm process (formerly “Braswell”)
  • Up to 8 GB dual channel non-ECC 1600/1333 MHz DDR3L in stacked SODIMM sockets
  • 2x DisplayPort, 1x HDMI, dual channel 18/24-bit LVDS (eDP by build option) supports three independent displays
  • 2x GbE, 4x USB 3.0 (Rear IO), 2x USB 2.0 (Header), 2x USB 2.0 (Front panel), 1x PCIe x16, 1x Mini PCIe, 1x mSATA, 1x SPI header for external BIOS
