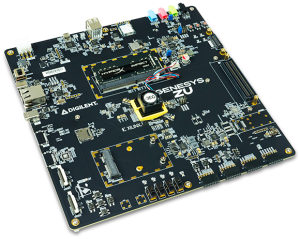

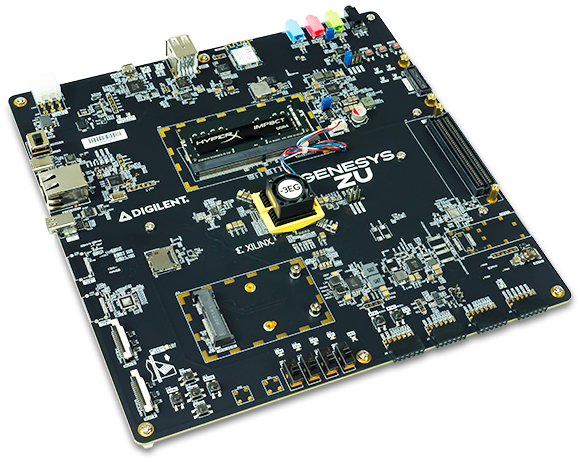

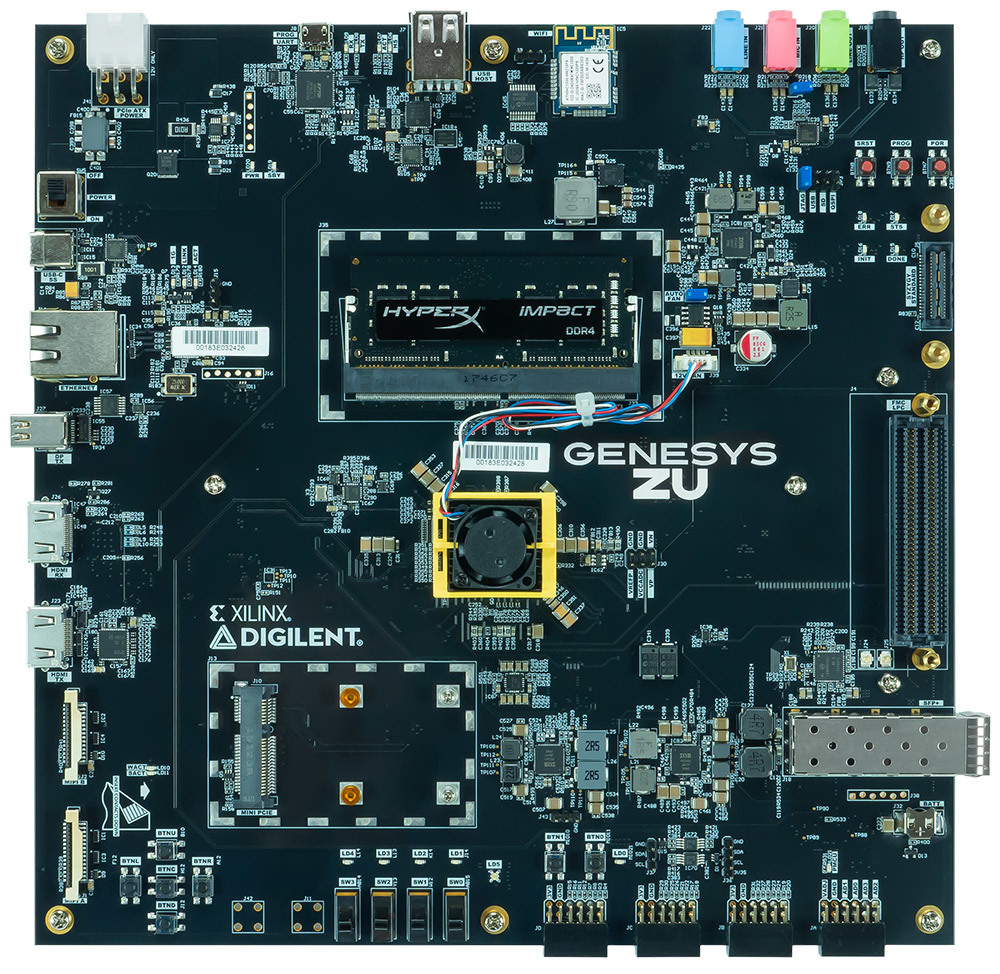

Genesys ZU-3EG: Zynq Ultrascale+ MPSoC Development Board

A powerful Zynq UltraScale+ 3EG MPSoC development board loaded with peripherals and a wide hardware ecosystem of add-on modules

The Genesys ZU-3EG is a standalone board designed with optimized specs, multimedia, and network connectivity interfaces, with a robust documentation library to quickly get you started on AI, research, aerospace/defense, cloud computing, and embedded vision applications.

The Xilinx Zynq UltraScale+ MPSoC at the heart of the Genesys ZU-3EG offers heterogeneous computing with its ARM A-53 APU and ARM Mali-400 MP2 GPU to go along with a substantial memory interface. A full-featured Type-C connector with USB 3.0 & USB 2.0, Dual-Role-Data and Dual-Role-Power, and integrated gigabit transceivers bringing support for DDR4, USB Type-C 3.1, PCIe, SATA, and DisplayPort surround the chip. The Genesys ZU-3EG supports multiple camera inputs, onboard audio codec, 4K video, and WiFi and 1G Ethernet in a Linux-based platform, rounding out a truly unique and all-encompassing development kit that excels in 5G, cellular radio (WWAN), SSD, wireless radio infrastructure, and video applications like surveillance, streaming, and encoding.

The Genesys ZU-3EG contains Digilent Pmod and high-speed SYZYGY-compatible Zmod ports to allow for flexible expansion and access to high speed, high bandwidth I/O for a software-defined radio, ultrasound, and a wide variety of other user-defined data acquisition or signal processing systems.

Features

• XCZU3EG-1SFVC784E (with heat sink and fan)
  • Quad-core ARM® Cortex-A53 Application Processing Unit
• • Dual-core ARM® Cortex-R5 Real-Time Processing Unit
• • Mali-400 MP2 graphics processing unit
• • 154K logic cells
• Memory:
  • 4 GiB DDR4 SODIMM module
  • ISSI 256 MB SNOR Flash
  • MicroSD Card Slot
• Peripheral connectivity:
  • USB Type-C 3.1 Gen1 Dual-Role Device
• • MiniPCIe / mSATA dual slot
  • USB 2.0 Host
  • Network connectivity:
  • 2.4 GHz on-board WiFi
  • 1G w/IEEE 1588 Ethernet
  • SIM card slot
  • WLAN/WWAN/LoRa: option – MiniPCIe
• Multimedia:
  • 1.2a Dual-Lane Display Port
  • 2x Pcam Dual-Lane
  • Audio Codec
• Expansion:
  • 1x FMC expansion connector
  • 1x SYZYGY port
  • 4x Pmod ports
  • GPIO: LED, Buttons, Switches

• Kits include
  • Power Supply, Desktop, 12V, 8A, w/PCIE Connector
  • IEC cable, US, 1.2 meter
  • IEC cable, EU, 1.2 meter
  • USB A TO MICRO B CABLE
  • Cable, USB, A to Type C, 15CM
  • JTAG HS1
  • Voucher for the Xilinx MIPI CSI-2 IP cores
